2026 Featherlite 9808 4H 13x18 Living Quarters Gooseneck Trailer

Condition

New

Model

9808 Living Quarters

Pull Type

Gooseneck

Length

32' 3"

Width

8'

Height

7' 6"

GVWR

16,000 lbs

Axles

2

Axle Rating

8,000 lbs each

Tires

235/80R16

Warranty

10-year Limited Structural Warranty
3-year Hitch-to-Bumper Warranty

Stalls

4

Load Style

Slant Load

Features

• Two 8000# Rubber Torsion Axels with Electric Brakes
• 4 16" 8 hole Aluminum Wheels with LT235/85R16 GY LRG Tires and Hub Covers
• Gooseneck Coupler 2 5/16" Adjustable
• Wave Panel with White Pre-Painted .040 Rivetless Aluminum Exterior Sheets Above
• Matching Spare Tire
• Spare Tire Carrier
• Double Leg Hydraulic Jack
• LED Clearance Lights
• Four LED Stop/Turn Lights
• Interlocking Smooth Extruded Aluminum Floors
• Solid Roof to Floor Wall Separating Horse Area from LQ
• 24" Walk Through Door Between LQ & Horse Area
• 32" x 74" Square Camper Door with Window & Deadbolt
• Fold up Camper Step Located at Camper Door
• Tapered Gooseneck
• Stainless Steel Front Sheet and Front Corners
• Rubber Dock Bumper
• Two 26" x 19" Windows in Gooseneck
• One Curbside 26" x 15" Window in Living Quarters
• Egress Window Street Side 48" x 24" in Living quarters
• Slide out on Streetside in Living quarters
• Battery Box and LP Tray Under Gooseneck
• Dual Deep Cycle Marine Batteries
• One Outside Tie Ring per Horse per Side

• Double Rear Doors with Windows
• Nylon Strap Behind Rear Horse
• Square Side Unload Door in Front of First Horse with Nylon Strap
• One Square Drop Down Feed Door with Drop Down Bars in Front of Each Horse
• Folding Rear Tack Wall Lined on Horse Area Side w/ White Aluminum
• Includes Turf Behind Halter Hooks in Rear Tack
• Air Flo Slant Stall Dividers with Shoulder Separator and Slam Latch Spring Loaded
• Full Length Stall Pads
• 3 Mangers w/ Square Exterior Access Doors
• One Pop Up Roof Vent per Horse
• Rubber Floor Mats
• 1 LED Light Strip per Two Horses
• Five Inside Tie Rings per Horse
• Three Feed Bad Rings at First Stall

• Mangers

• One Adjustable Saddle Rack for Each Horse Mounted on a Removable Post
• Blanket Bar Swinging
• Black Plastic Brush Tray
• Aluminum Halter Hooks

Trailer upgrades

• Black Aluminum Wheels ILO Silver Aluminum
• Additional Clearance Light Colored Lense
• Switch 3-Way 12V AMP ILO Standard
• Easy Care Floor Package
• Full Width Rear Ramp w/ Matching Side Sheet Color
• Curbside Feed Door Package ILO Standard Windows on Tail Side
• Camper Style Latch to Unload Door
• Removable Aluminum Bottom Half Divider
• Aerodynamic Hay Rack with Ladder - Color to Match Exterior Sheets
• Ladder Telescoping ILO Standard
• Line & Insulate Horse Area Ceiling
• Step Camper Fold Up at Horse Area Escape Door
• Vinyl Graphics - Western Styling

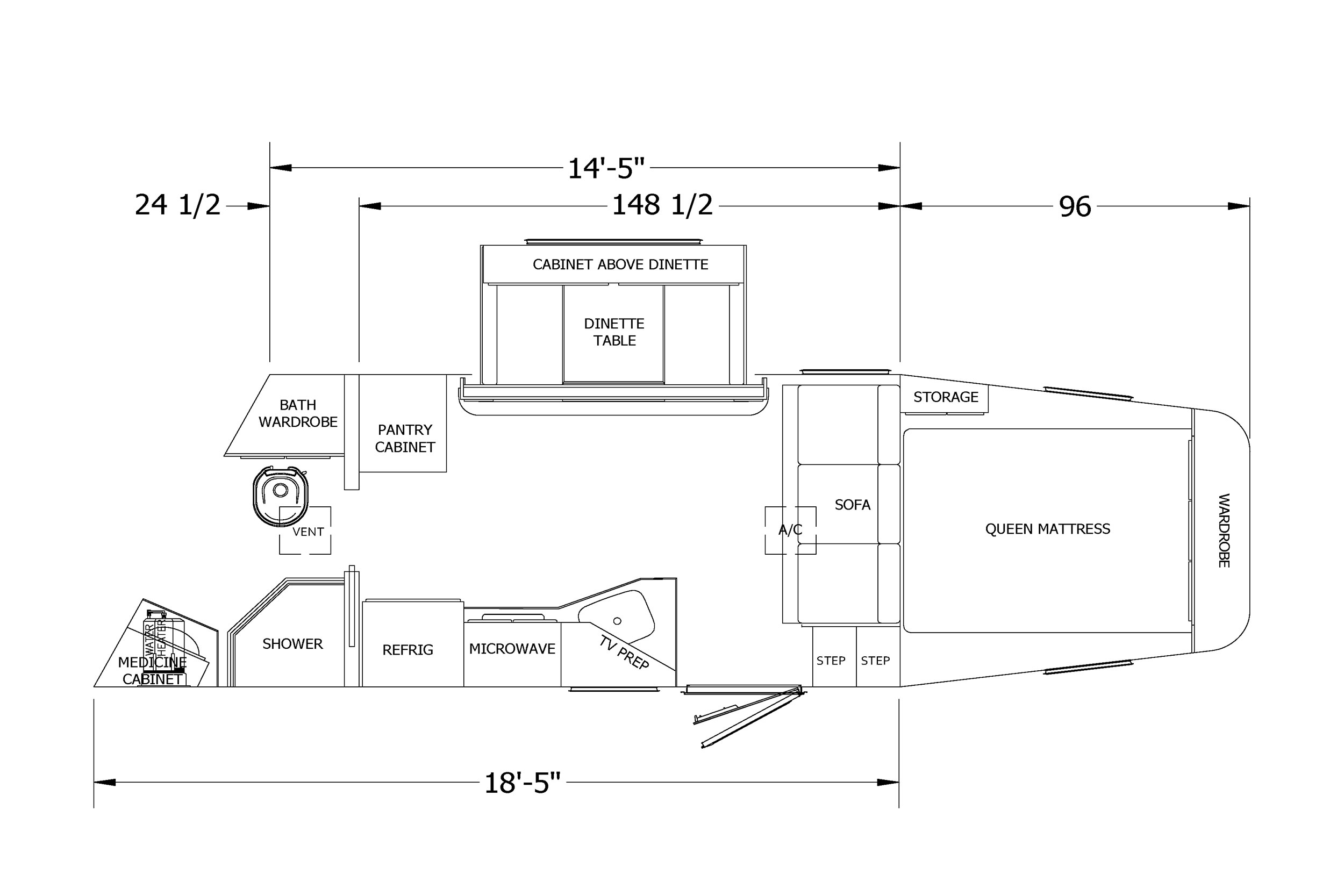

Shortwall: 13'

General area

• Jacknife Sofa in Main LQ Area
• Dinette in Main LQ Area
• Cabinets Above Dinette
• LED Lighting Under Overhead Cabinets in Main Area

Decor

• Espresso Canyon

Bedroom / sleeping

• Foam Plush Queen Size Mattress
• Berber Carpet on Bunk Area Floor
• Insulated Bunk Area Floor
• Front Wardrobe w/ Two Mirrored Doors & Middle Storage
• USB Charger in Wardrobe Area
• Shirt Closet in Bunk Area
• LED Reading Lights in Bunk Area

Kitchen

• Cabinets Under & Above Kitchen Counter
• Drawers Under Kitchen Counter
• Undermount Single Bowl Kitchen Sink
• Pull Out Faucet with Sprayer
• Recessed (2 Burner) Stainless Steel Cooktop
• Lighted/Vented Stainless Steel Range Hood
• 1.0 Cubic Foot Stainless Steel Convectional Microwave
• 8 cu ft Refrigerator
• Solid Wood Refrigerator Door

Systems

• On Demand Pressure Water System
• City Water Hook Up
• Outside Water Spigot
• 6 Gallon Gas Water Heater
• 40 Gallon Fresh Water Tank
• Two 31 Gallon Waste Water Holding Tanks
• Tank Monitor System
• 55 Amp Power Converter
• 20000 BTU Ducted Furnace
• 13500 BTU Air Conditioner with Heat Strip
• CO2 LP and Smoke Alarms
• LED Exterior Porch Light
• 110V Exterior Receptable & 120V 30-AMP Shoreline
• Dual 20# LP Tanks w/ Regulator
• Sewer Hose & Holder
• Electric Awning with LED Light Strip

Bathrooms

• Hollow Core Pocket Door to Bathroom
• Undermount Bathroom Sink with Medicine Cabinet Above
• Linen Closet with Light & Mirrored Doors
• Radius Shower with Rain Glass Door
• Sky Dome Above Shower
• Porcelain Foot Flush Toilet
• Power Lift Roof Vent

Upgrades

• Wooden Hat Rack
• Under Counter Lighting
• Water Heater - Continuous Flow
• 32" Smart TV w/ Swing Arm
• Sconce Lights - Bunk Area
• 15000 BTU A/C Upgrade
• Large Mirror in Main LQ Area
• Duct Ceiling Fan for Air Conditioner
• Generator - Pre-wire with Transfer Switch
• Overhead Cabinets in Bunk Area
• Soft Touch Walls and Ceiling
